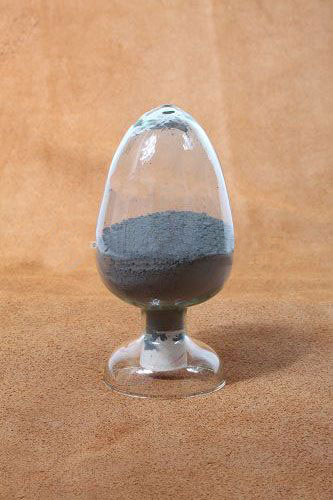

HJ-909 composite iron titanium powder

[Use scope and anti-rust mechanism]

This product can partially replace zinc powder in producing zinc-rich primer, can completely replace the anti-rust paint such as cloud iron and phosphorus zinc to make various rustproof and anti-corrosion paints.

Through a variety of organic additives, conduct heat treatment on the ultra-fine powder and pigment to make it form a dense coating on the pigment surface, thus effectively block water molecules, oxygen and other gases for steel corrosion, and greatly enhance the pigment adhesion on steel surface, and therefore possesses excellent rustproof capability.

[Ingredients]: This product is based on ultra-fine iron powder as a carrier of phosphorus compound after a certain amount of non-toxic paint-coated surface heat treatment and superfine powder complexes formed.

[Performance]:

(1) Compared with other rustproof paints, its dispersion performance is significantly improved, and the paint stability, anti-sinking, rustproof performance also showed significant improvement.

(2) HJ-909 composite anti-rust paint has significant cost performance which can greatly reduce the production cost of anti-rust paint.

(3) HJ-909 composite anti-rust paint doesn’t contain heavy metals, which is a completely non-toxic environmentally friendly new product, and easy to use in spraying, brushing; also an ideal new-type anti-rust products.

[Product size]:

The average particle size of 500 mesh product is 97%≤28 micron

The average particle size of 800 mesh product is 97%≤18 micron

The average particle size of 1200 mesh product is 97%≤18 micron

[Using methods]: Directly blend with the base materials, auxiliary materials, additives and solvent; just disperse it.

[Packing]: Double plastic bag packing 25kg / bag.

[Storage]: Keep in ventilated dry place, storage for two years without deterioration.

Application formula of HJ-909 zinc grey iron titanium anti-corrosion pigment

1. Epoxy zinc-rich primer

Group A: 60% 601 25.0

6101 2.0

BP-183B 1.8

Ethanol 1.2

500 mesh zinc powder 45.0 ~ 15.0

HJ-909 iron titanium powder 15.0 ~ 45.0

Xylene 6.0

N-butanol 4.0/100.0

Group B :TY650 40.0

T-31 10.0

Xylene 30.0

N-butanol 20.0/100.0

Construction ratio of Group A and Group B: A: B = 10:1

Technical specifications:

Paint color and appearance: Zinc Gray, smooth paint film

Viscosity (Smear -4 cups) ≥ 120S

Surface dry: ≤ 2h

Actual dry: ≤ 24h

Adhesion: Grade A

Flexibility: 1mm

Impact strength: 50Kg.cm

2. Zinc gray alkyd antirust paint:

389-9 40.0

Ethanol 0.3

BP-183B 0.7

HJ-909 iron titanium powder 45.0

200 # solvent 10.0

Xylene 2.0

8% Co-dry material 0.3

4% Manganese dry material 0.6

24% Lead dry material 0.9

F841 Anti-skinning agent 0.2/100.0
